Leg

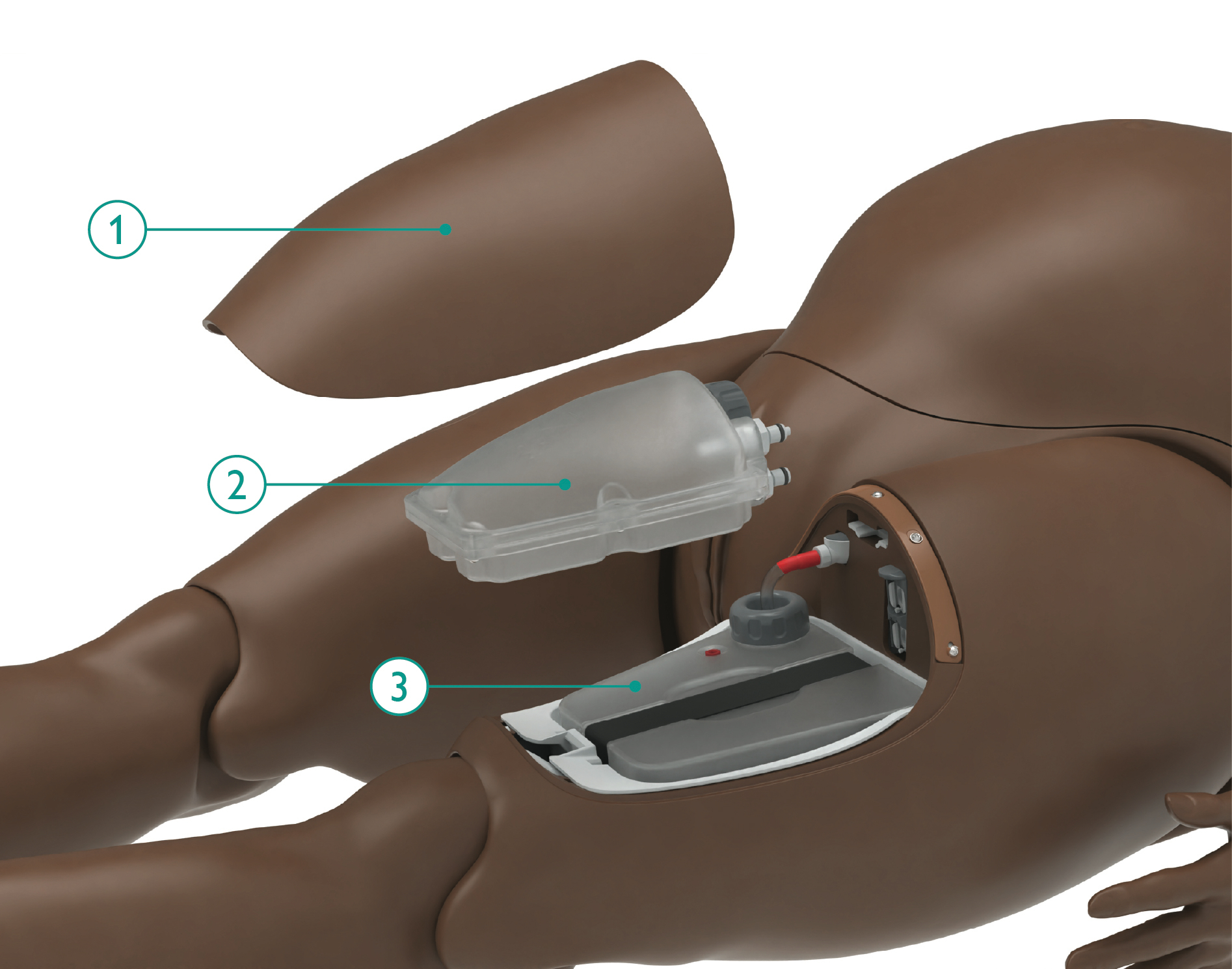

Leg overview
 |
Thigh lid
Urine tank
Internal blood tank
Attaching the legs

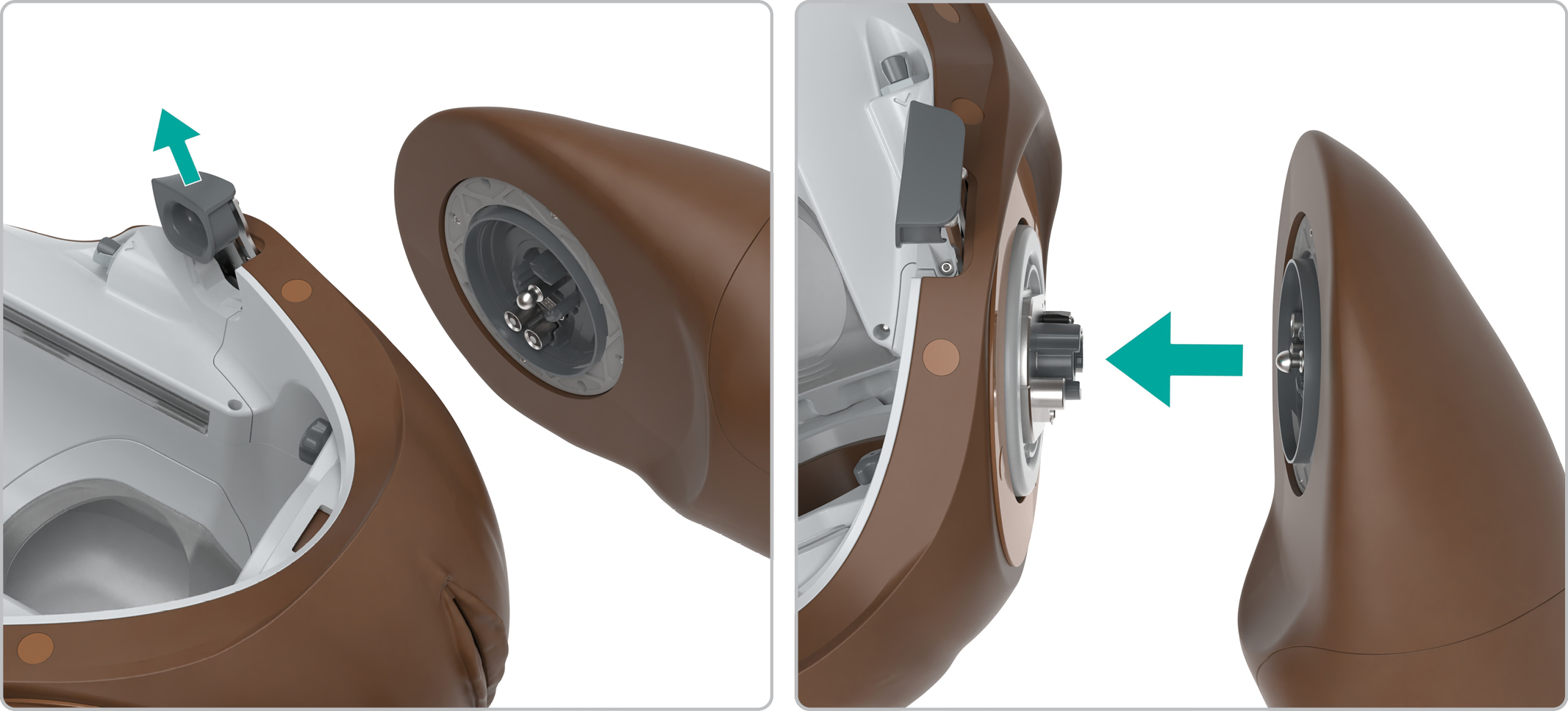

Pull up the leg latches on both sides of the pelvis and clip the legs on the Patient Simulator.
Note
Push on the lower part of the upper thigh before latching down. This will ensure a secure connection of the legs.

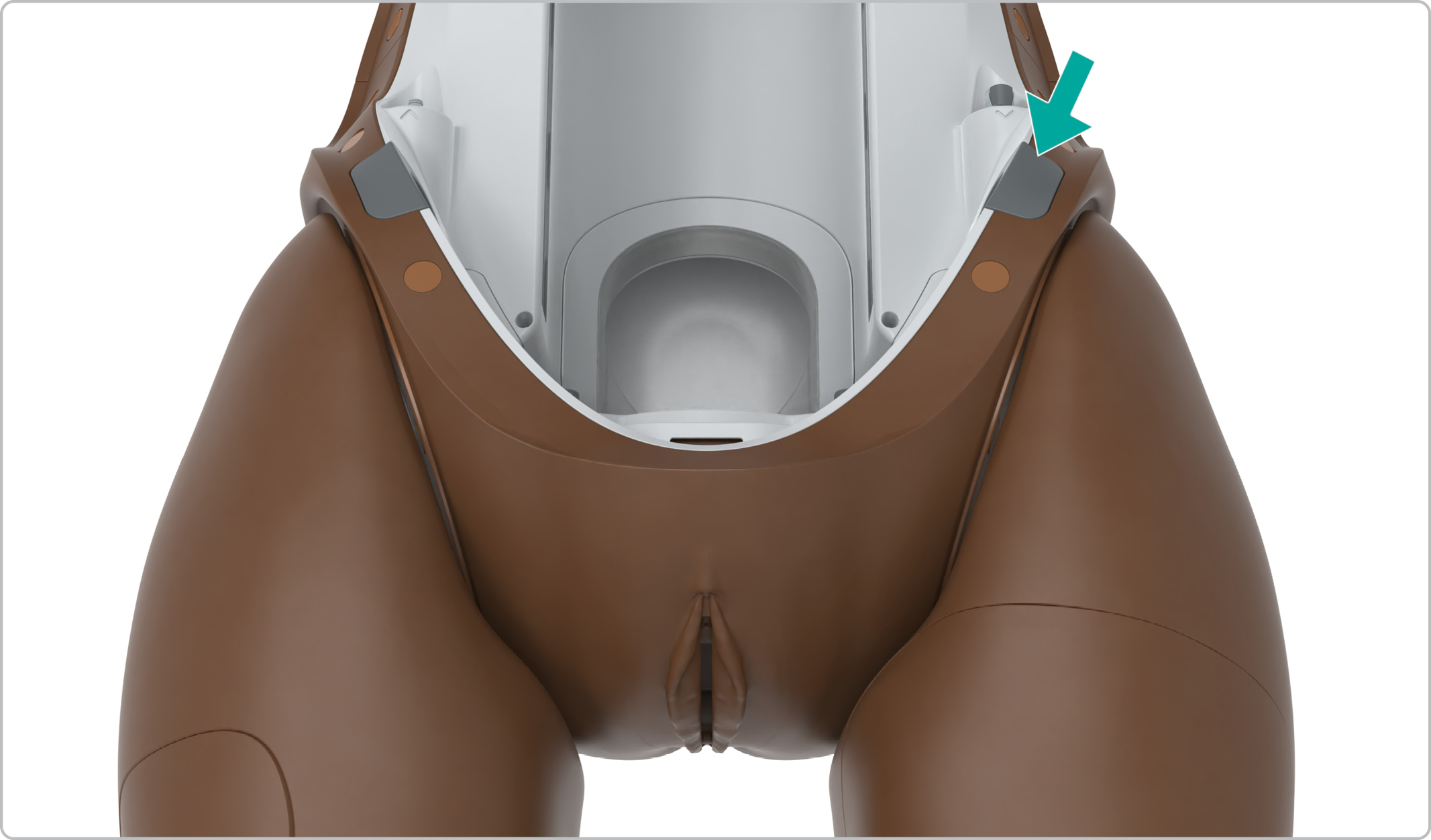

Pull down the leg latches on both sides of the pelvis to lock the legs in place.
Filling the urine tank
Unlatch the thigh lid by pulling the release lever under the skin above the knee.
Unclip the internal urine tank by pressing the release button on the right side of the connection point.
Remove the urine tank.
Open the cap and fill the tank with water.
Place the urine tank back inside the thigh and push to clip it in.
Close the thigh lid.
NOTE
Do not fill the urine tank above the maximum line.
Filling the internal blood tank
Unlatch the thigh lid by pulling the release lever under the skin above the knee.
Unclip the internal urine tank by pressing the release button on the right side of the connection point.
Remove the urine tank.
Disconnect the internal blood-tank tube from the leg.
Remove the internal blood tank and fill it with a mixture of simulated blood and distilled water.
Close the internal blood tank and put it back inside the thigh.
Connect the internal blood-tank tube to the leg.
Place the urine tank back inside the thigh and push to clip it in.
Close the thigh lid.
